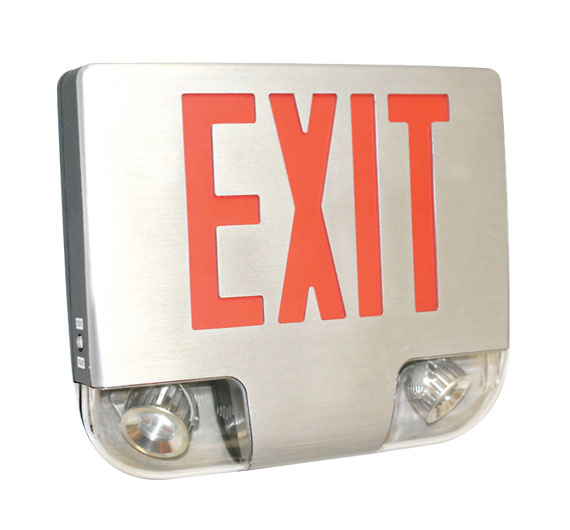

LED Die-Cast Combo Emergency Light

Retail Price:
$189.00
Your Price:
$125.00 (You save $64.00)
Model:
L-C-DC
Brand:
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share


Product Description

The LED Die Cast Combination LED Exit & LED Emergency Light unit with Battery-Backup is the first all LED Combo unit on the market.  This specification grade unit offers tremendous flexibility.  The LED emergency light heads can be adjusted to aim the light where desired.  The exit sign may be illuminated with either Red or Green high-powered LED's and the housing is available in Brushed Aluminum.  These are ideal for architectural and commercial installations.


Product Specifications

CONSTRUCTION
LED Combo Emergency Exit Sign features an attractive Brusshed Aluminum housing design. Ideal for commercial and institutional installations, this combination unit blends perfectly with current interior decors. These Signs use high-output red or green LED technology. Universal mounting on the wall or ceiling allows installation versatility. Housed in the bottom of the exit is are two high output LED emergency lights that provide optimal light distribution and performance.
EXTERNAL SPECIFICATIONS
The Combo Unit is constructed with Architectural Die-Cast Aluminum Housing. The Combo Unit comes standard with a mounting canopy, one (1) backplate, removeable chevrons and all mounting hardware. Features two 3 watt LED Emergency Light Heads bottom mounted and fully adjustable. The Combo Unit comes standard finished in Brushed Aluminum. Removeable chevron directional indicators are standard on each fixture. External LED status indicator and test switch are standard.
INTERNAL SPECIFICATIONS
SELF-POWERED: standard 120/277VAC input, self-powered versions use a Long-Life, maintenance-free rechargeable NiCd Battery that provides a minimum 120 minutes of emergency duration. Solid state charger and transfer.
INSTALLATION
The Combo Unit is suitable for surface ceiling, and wall or end mounting. Suitable for indoor and UL Listed for damp location installations.
MODERN DESIGN
LED Combo Emergency Exit Sign provides an attractive, versatile, space saving and affordable solution. The durable Die-Cast Aluminum housing is corrosion and flame resistant. The modern and efficient design of the Combo Unit allows for surface ceiling, and wall or end mounting. Canopy and all installation hardware is included.
ELECTRICAL SPECIFICATIONS
The Combo Unit is configured with high-output LED lamps. LED version is standard with 120/277VAC input.
BATTERY TECHNOLOGY
The Combo Unit is designed with a Long-Life, maintenance-free rechargeable NiCd Battery that provides a minimum emergency duration of 120 minutes. Recharge time of the battery is twenty-four (24) hours. The maximum battery working temperature is 0-50 Cº/32-122 Fº standard.
MECHANICAL SPECIFICATIONS
LED Combo Emergency Exit Sign is constructed of durable corrosion and flame resistant Die-Cast Aluminum.
Field removeable directional chevron arrows are standard.
Universally mounted single or double face Available.
Canopy and mounting hardware are included.
High-output LED technology provides energy savings, long life and even illumination levels.
120/277VAC input, Long-Life, maintenance-free rechargeable NiCd Battery is protected by an electronic cut-off circuit that prevents overdischarge.
External test switch and monitor LED are standard.
WARRANTY
Unit: (excluding lamps & battery) 3-years full coverage against defects in materials and workmanship from date of shipment
DIMENSIONS
12.5" Length 11" Height 2.125" Width
LISTINGS
UL/CSA, ETL
CODES
Meets NFPA 101, NEC, OSHA
